1 Introduction:
The compact control unit Morcellator with its simple and intuitive operation panel controls the speed of the attached instruments. For the morcellation of tissue speeds of up to 700 RPM are appropriate.
The Morcellator attached instruments include Cutting tubes, Obturator, Trocar sleeve, Dilator, Guiding bar, Convertor, Uterine forceps. To suit the needs of every procedure the model range of the Morcellator consist of instruments with three different diameters. They are available in diameter 10, 15 and 18 mm. By carefully composed and aligned instruments and accessories the system as a whole delivers excellent results at morcellation and guarantees for maximum safety at operation.
If you are looking for minimally invasive surgery medical instruments with good quality, competitive price and reliable service. Wanhe medcal is manufaturing these for you. We provide general and professional laparoscopic instruments with CE, FDA approved.
2 Technical data
a. Mains voltage: 220/230 V @ 50-60Hz
b. Power consumption: 40W
c. Speed range, Morcellator: 200-700 RPM
d. Demensions(W/D/H): 190/200/80mm
e. Weight: 2.9KG

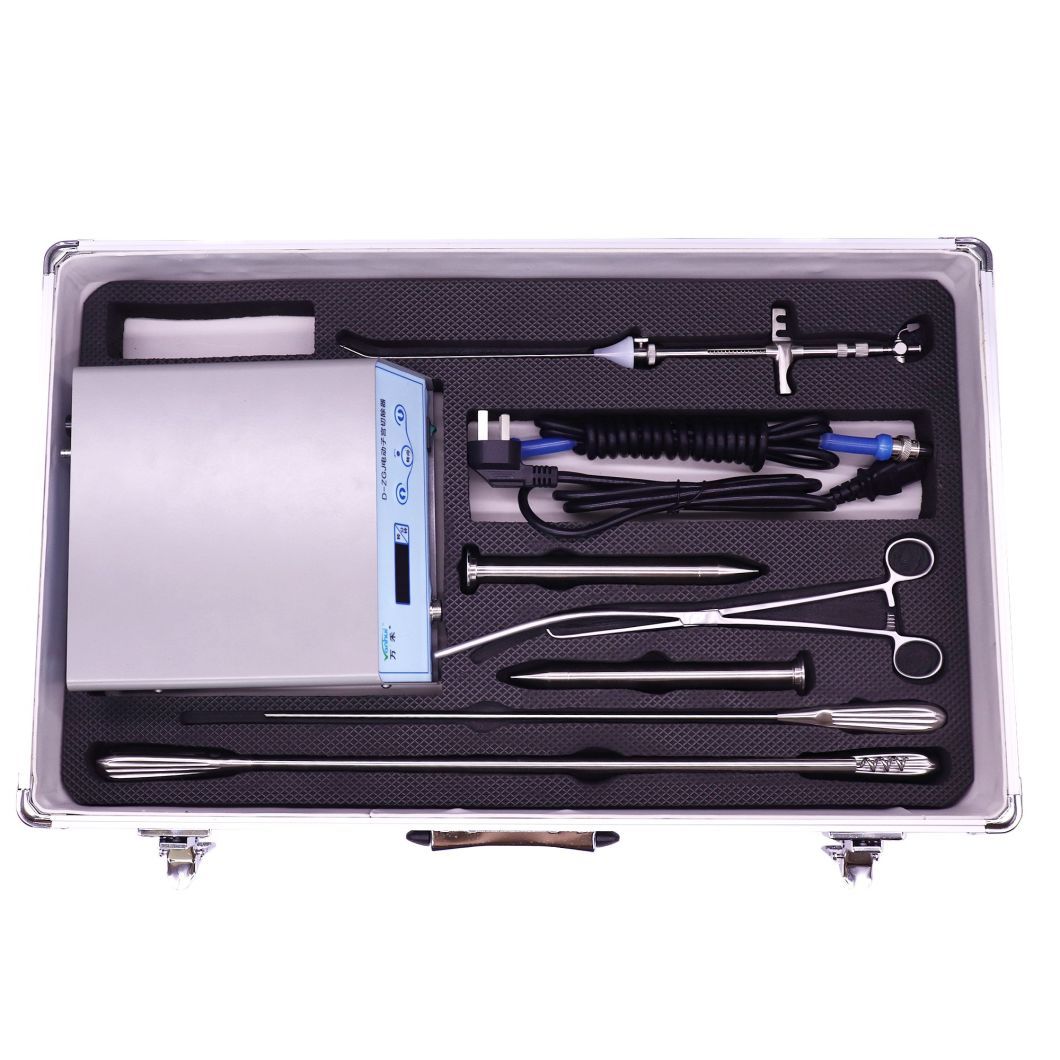

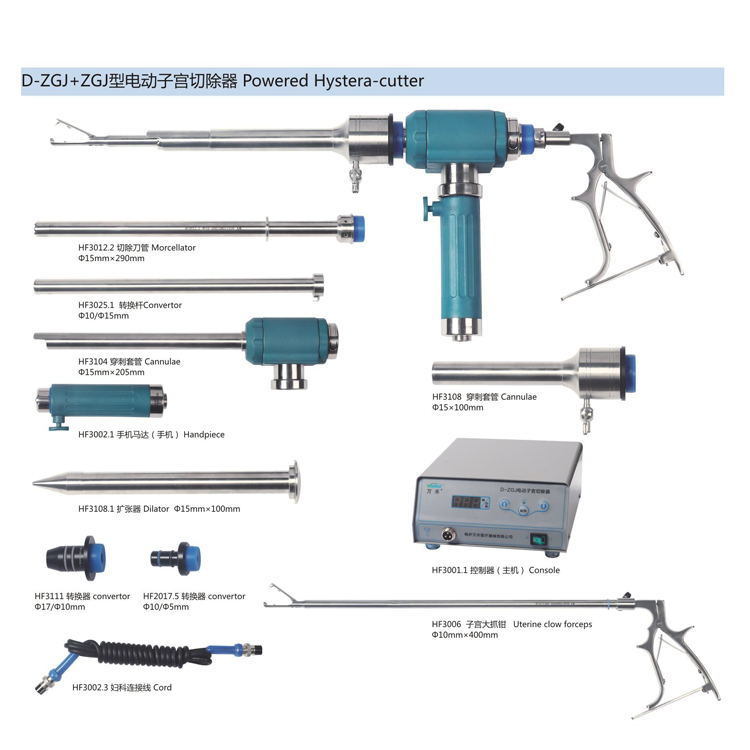

Morcellator Set For Your Reference:
| Model | Name | Specifications |
| HF3001.1 | Morcellator Console | / |
| HF3002.1 | Handpiece/Electric motor | / |
| | | |
| HF3012.2 | Cutting tube | Φ15x290mm |
| HF3012.8 | Cutting tube | Φ17x290mm |
| | | 0mm |
| HF3108.1 | Dilator | Φ15x100mm |
| HF3110.1 | Dilator | Φ17x100mm |
| HF3108 | Cannulae | Φ15x100mm |
| HF3110 | Cannulae | Φ17x100mm |
| | | |
| | | mm |
| HF3025.1 | Convertor | Φ10/Φ15mm |
| HF3025.4 | Convertor | Φ10/Φ17mm |
| | | |
| | | 0/Φ18mm |
| HF3006 | Uterine forceps large | Φ10x420mm |
| HF3006.1 | Uterine forceps small | Φ5x400mm |
| | | |
3 Packing & Shipping:
| Package detail: | Poly bag and special shockproof paper box. |
| Delivery detail: | By air |
